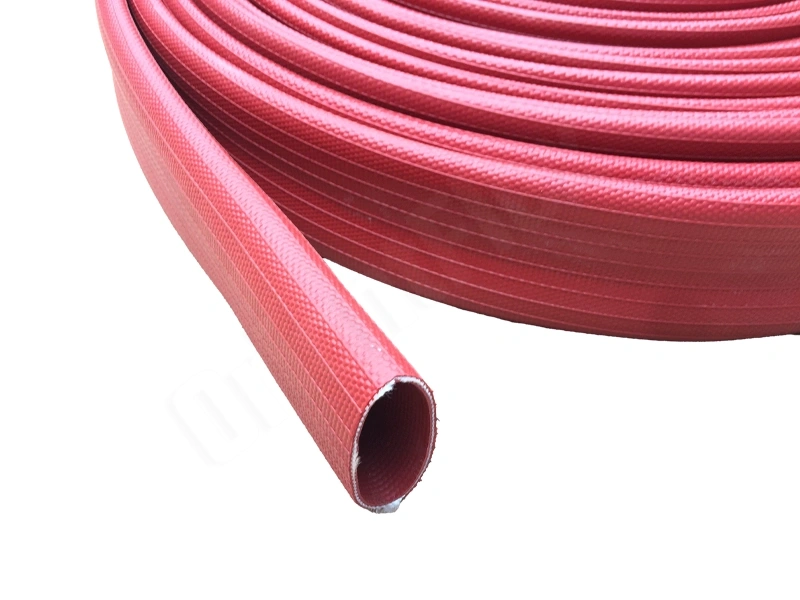

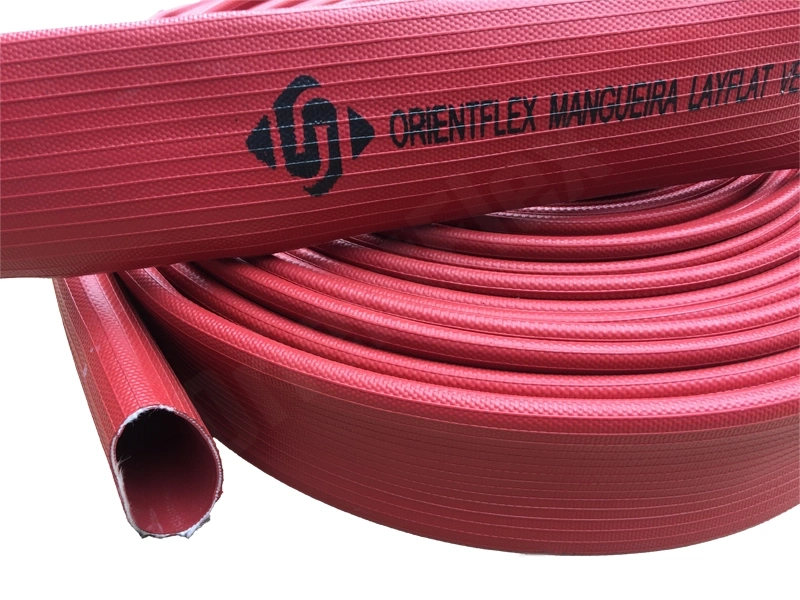

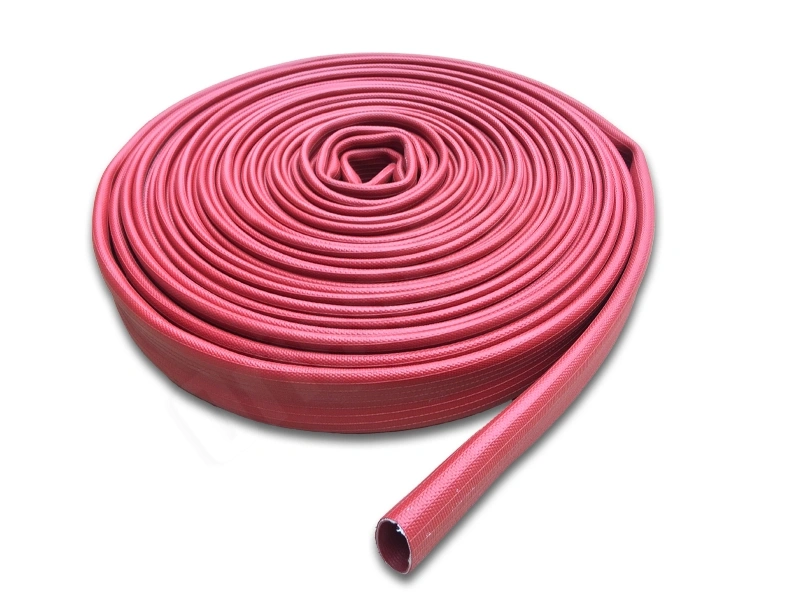

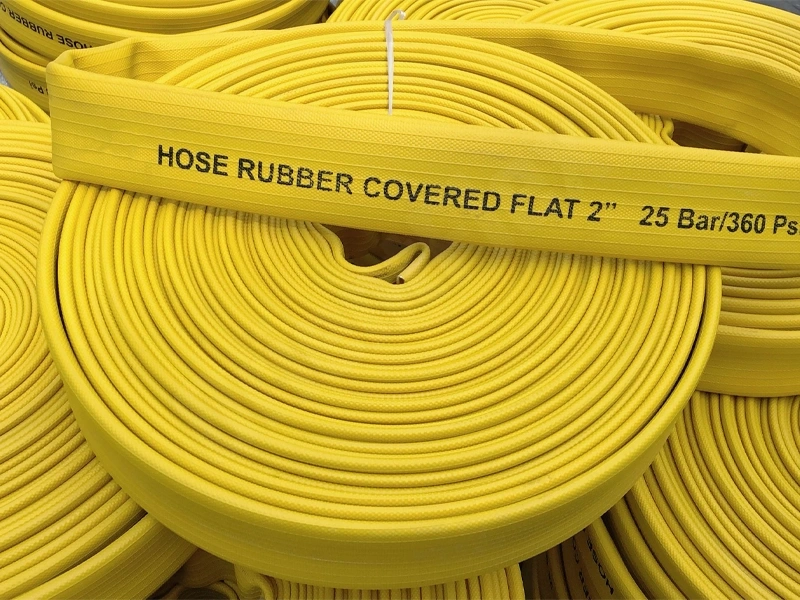

Rubber Layflat Discharge Hose
Rubber Layflat Discharge Hose
The rubber layflat hose has an unique 3-ply nitrile rubber design. While the cover and liner are extruded and double vulcanize for a compact hose wall. However, the strength is in its 100% polyester fiber reinforce. Polyester is famous for its strength. But it also has the ability that when stretched, it can return to its original size and shape. Tightly woven and high strength polyester reinforce means a longer wear life and superior puncture resistance. The inner nitrile rubber tube makes the hose resist oil, chemical and other corrosives. While the TPR cover offers good wear ability. Thus you can drag it on the ground withou worry about the break.
Rubber Layflat Hose Structure
Tube and cover: 1. Nitril synthetic rubber
2. TPR (thermoplastic rubber)
Reinforcement: polyester woven jacket
Temperature: -29℃ to 80℃（ 20℉ to +176℉）
Application: Lay flat rubber hose is ideal irrigation; water and dewater; drainage and pump discharge; Industry washdown, Limited oil and chemical application.
Layflat Rubber Hose Features
- Unique woven structure resists kink and twist
- Ribbed cover helps resist oil, weather and wear
- Light in weight, less bulky, stores in less space than most rubber hoses
Rubber Layflat Hose Specification
| I.D | WP | Length | KG | |
| inch | mm | bar | m | kg/pcs |
| 3/4 | 19 | 25 | 30 | 5.5-6 |
| 1 | 25 | 25 | 30 | 7 |
| 1-1/4 | 32 | 25 | 30 | 9 |
| 1-1/2 | 38 | 25 | 30 | 11 |
| 1-3/4 | 45 | 25 | 30 | 13 |
| 2 | 51 | 25 | 30 | 15 |
| 2-1/2 | 65 | 25 | 30 | 19.5 |
| 2-3/4 | 70 | 25 | 30 | 21 |
| 3 | 77 | 25 | 30 | 23.5 |
| 3/4 | 19 | 20 | 30 | 5.5-6 |
| 1 | 25 | 20 | 30 | 7 |
| 1-1/4 | 32 | 20 | 30 | 9 |
| 1-1/2 | 38 | 20 | 30 | 11 |
| 1-3/4 | 45 | 20 | 30 | 13 |
| 2 | 51 | 20 | 30 | 15 |
| 2-1/2 | 65 | 20 | 30 | 19.5 |
| 2-3/4 | 70 | 20 | 30 | 21 |
| 3 | 77 | 20 | 30 | 23.5 |
| 4 | 100 | 20 | 30 | 28.5 |
| 1-1/4 | 32 | 16 | 30 | 9 |
| 1-1/2 | 38 | 16 | 30 | 11 |
| 2 | 51 | 16 | 30 | 15 |
| 2-1/2 | 65 | 16 | 30 | 19 |
| 3 | 77 | 16 | 30 | 23 |
| 4 | 100 | 16 | 30 | 28 |
| 1-1/4 | 32 | 13 | 30 | 9 |
| 1-1/2 | 38 | 13 | 30 | 11 |
| 2 | 51 | 13 | 30 | 15 |
| 2-1/2 | 65 | 13 | 30 | 19 |
| 3 | 77 | 13 | 30 | 23 |
| 4 | 100 | 13 | 30 | 28 |
| 5 | 125 | 13 | 30 | 48 |
| 6 | 150 | 13 | 30 | 58 |
| 1-1/4 | 32 | 10 | 30 | 9 |
| 1-1/2 | 38 | 10 | 30 | 11 |
| 2 | 51 | 10 | 30 | 15 |
| 2-1/2 | 65 | 10 | 30 | 19 |
| 3 | 77 | 10 | 30 | 23 |
| 4 | 100 | 10 | 30 | 28 |
| 5 | 125 | 10 | 30 | 48 |
| 6 | 150 | 10 | 30 | 58 |
| 8 | 200 | 10 | 30 |
