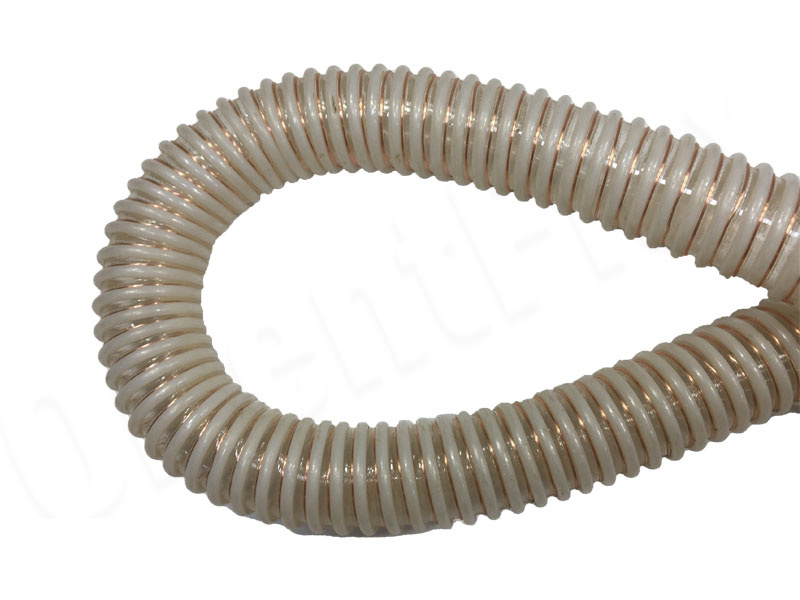

PU Helix Duct Hose
PU Helix Duct Hose
PU helix duct hose is made from abrasion resistant polyurethane. Besides, there is a rigid PVC helix outside the hose. Thus it has much better abrasion resistance. Orientflex offers you the complete series of duct hose and they will be your best solution for dust collection and material handling.
PU Helix Duct Hose Structure
Tube: Top grade of PU
Reinforcement: Rigid PVC
Temperature: -32℃ to +90℃ (-90℉ to +196℉)
Application: As suction and transport hose, it’s suitable for the following substances:
Abrasive solids such as dusts, powders, chips and grains
Gaseous and liquid media, Also ideal as ventilation hose for air conditioning and ventilation system
PU Duct Hose Pipe is a lightweight and flexible hose designed for air, dust and light material. It is made from polyurethane and suitable for industrial air movement, fume control and dust collection.
The polyurethane wall and rigid PVC helix reinforcement offer the flexible duct hose excellent compressibility, abrasion and chemical resistance. Polyurethane has excellent sliding and impact abrasion, fuels,oils, grease and solvents resistance.
These make extraction ducting especially suitable for auto, steel and aluminum manufactures and printing. They are available in black or clear color.
PU Helix Duct Hose Features
- Extremely tearing resistant
- Abrasion resistant
- Smooth interior
- Flexible and light in weight
- Extremely transparent
- Could be resistant to UV if requested
PU Helix Duct Hose Specification
| I.D. | O.D. | overpressure | bend radius | L | I.D. | O.D. | overpressure | bend radius | L |
| mm | mm | mH2O | mm | m | mm | mm | mH2O | mm | m |
| 16 | 23 | 2.5 | 21 | 20 | 90 | 101 | 1.4 | 125 | 20 |
| 20 | 27 | 2.5 | 25 | 20 | 100 | 111 | 1.3 | 140 | 20 |
| 25 | 32 | 2.5 | 30 | 20 | 102 | 112 | 1.3 | 140 | 20 |
| 27 | 34 | 2.5 | 32 | 20 | 110 | 122 | 1.2 | 150 | 20 |
| 30 | 37 | 2.5 | 35 | 20 | 120 | 132 | 1 | 160 | 20 |
| 32 | 38 | 2 | 35 | 20 | 127 | 137 | 1 | 170 | 20 |
| 35 | 42 | 2 | 45 | 20 | 130 | 140 | 0.9 | 170 | 20 |
| 38 | 49 | 2 | 50 | 20 | 140 | 150 | 0.9 | 180 | 20 |
| 40 | 46 | 2 | 60 | 20 | 150 | 162 | 0.8 | 200 | 10 |
| 45 | 51 | 2 | 65 | 20 | 154 | 165 | 0.8 | 200 | 10 |
| 51 | 58 | 2 | 70 | 20 | 160 | 172 | 0.7 | 220 | 10 |
| 55 | 62 | 2 | 75 | 20 | 170 | 182 | 0.5 | 230 | 10 |
| 60 | 69 | 1.6 | 80 | 20 | 180 | 192 | 0.4 | 250 | 10 |
| 63 | 72 | 1.6 | 80 | 20 | 200 | 215 | 0.4 | 260 | 5 |
| 65 | 74 | 1.6 | 90 | 20 | 203 | 215 | 0.4 | 260 | 5 |
| 70 | 79 | 1.6 | 95 | 20 | 210 | 222 | 0.4 | 260 | 5 |
| 76 | 85 | 1.6 | 100 | 20 | 250 | 262 | 0.4 | 300 | 5 |
| 80 | 90 | 1.6 | 110 | 20 | 300 | 312 | 0.3 | 350 | 5 |
