Hydraulic Hose SAE 100 R16
Hydraulic Hose SAE 100 R16
SAE 100 R16 steel wire reinforced hydraulic hose is suitable for use in narrow space. Because it has small bend radius and outside diameter.
SAE 100 R16 Hose
Tube: Black and oil resistant nitrile rubber
Reinforcement: two layers of steel wire braided
Cover: Black and oil and weather resistant synthetic rubber
Surface: wrapped surface and smooth surface are available
Temperature: -40℃ to +100℃ (-40℉ to +212℉)
SAE 100 R16 Hose consists of three parts: tube, reinforce and cover. The tube absorbs nitrile rubber because it has the best oil resistance. Thus it’s ideal for oil deliver. The reinforce is one layer or two layers of braided steel wire. It makes the hose can bear high pressure. While the cover is weather resistant synthetic rubber, making the hose resist ozone, aging, abrasion, corrosion and cut.
Hydraulic Hose SAE100 R16 Application
Hydraulic hose SAE 100 R15 can be used for petroleum and water based hydraulic fluids.
SAE100 R16 Hose Specification
| Metric Size | Inch Size | SAE Dash Size | I.D | W.D | O.D | Max W.P | Min B.P | Min B.R | W.T | ||
| mm | mm | mm | |||||||||
| mm | inche | dash | min | max | max | max | mpa | psi | mpa | mm | kg/m |
| 6.3 | 1/4 | 04 | 6.2 | 7.0 | 12.3 | 14.5 | 35.0 | 5075 | 140.0 | 50.0 | 0.31 |
| 8 | 5/16 | 05 | 7.7 | 8.5 | 13.3 | 15.7 | 29.7 | 4307 | 119.0 | 55.0 | 0.35 |
| 10 | 3/8 | 06 | 9.3 | 10.1 | 15.9 | 18.8 | 28.0 | 4060 | 112.0 | 65.0 | 0.47 |
| 12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.0 | 22.0 | 24.5 | 3553 | 98.0 | 90.0 | 0.54 |
| 16 | 5/8 | 10 | 15.5 | 16.7 | 22.6 | 25.4 | 19.2 | 2784 | 77.0 | 100.0 | 0.7 |
| 19 | 3/4 | 12 | 18.6 | 19.8 | 26.3 | 29.0 | 15.7 | 2277 | 63.0 | 120.0 | 0.86 |
| 25 | 1 | 16 | 25.0 | 26.4 | 34.0 | 36.6 | 14.0 | 2030 | 56.0 | 150.0 | 1.2 |
| 31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 41.9 | 44.3 | 11.3 | 1639 | 45.0 | 210.0 | 1.6 |

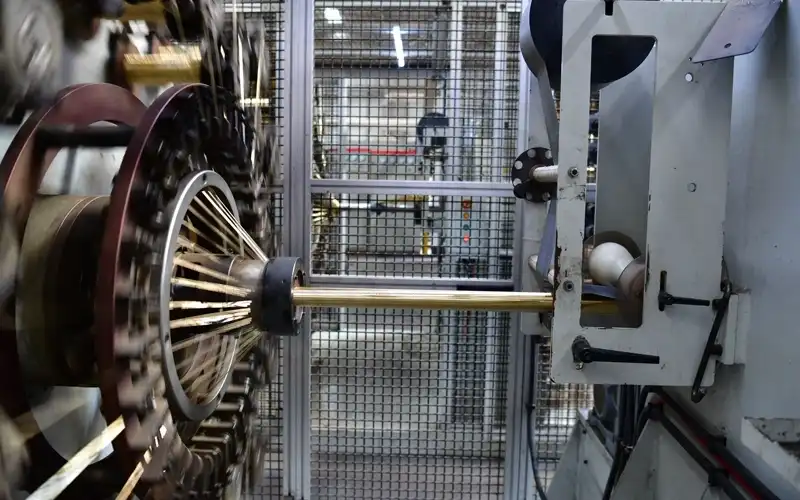

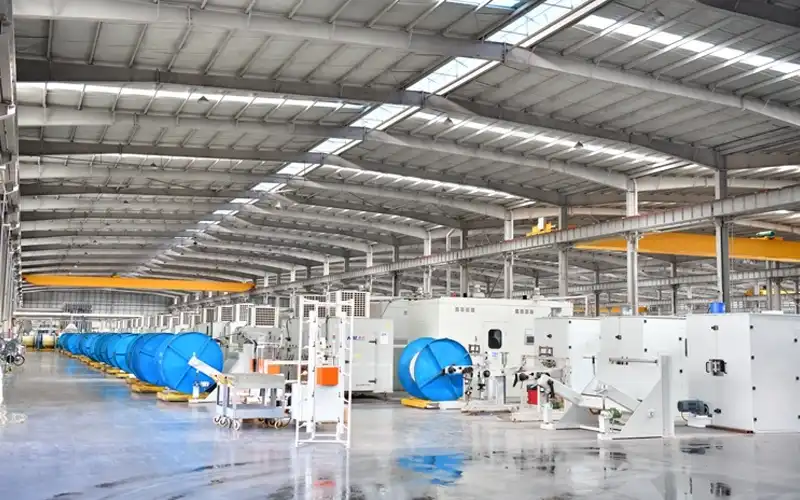

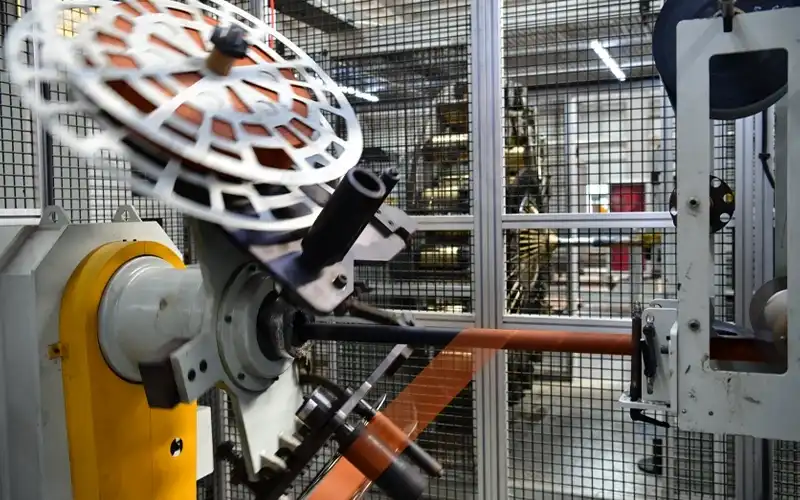

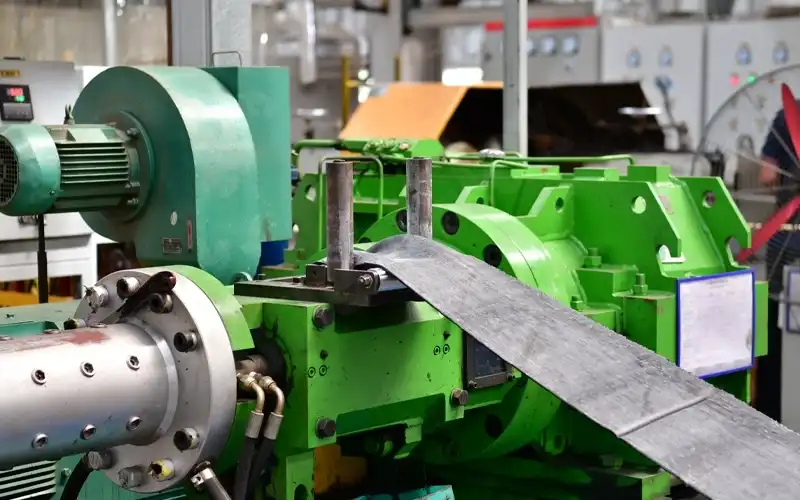

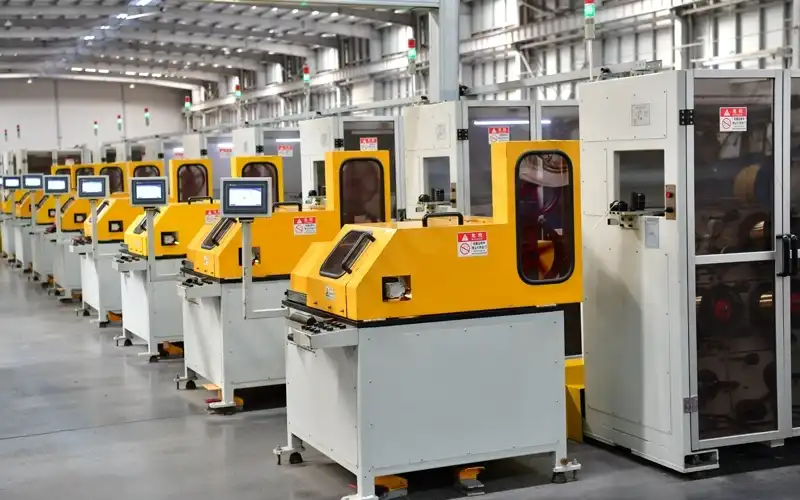

Hydraulic Hose Workshop
