PVC Suction Hose
PVC Suction Hose
The PVC Suction Hose is presented as the optimal choice for water pumps in agricultural applications. It is constructed from reinforced PVC, making it abrasion-resistant and highly durable. A key feature is its ability to withstand both positive and negative pressure. Inquire the Direct Factory Price Now!
Suction Hose Structure
Tube & Cover: High quality pvc with rigid pvc helix
Temperature: -10℃ to +65℃ (14℉ to +150℉)
Application: Suction hose pipe is designed for regular water supply and drainage to transport various powdery particles and liquids. It is widely used in civil and building works, agriculture, mining, construction, shipbuilding and fishery.
Flexible Suction Hose Pipe is commonly seen on pumps and many industries. It is a non-marking, lightweight, mild abrasion and chemical resistant hose which is easy to handle and typically used in lighter duty applications.
The clear Suction Hose permits excellent visibility and its smooth exterior and interior allow for maximum flow of products. This hose is not suitable for transferring fuels and is also FDA approved for potable water. Inquire the Direct Factory Price Now!
PVC Water Suction Hose Features
- Smooth inner construction for unrestricted flow of materials
- Constructed with rigid spiral helix
- Small bending radius
- Impact & crush resistant
- Abrasion & chemical resistant
- Economical & flexible
PVC Suction Hose Light Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 23.0±0.5 | 2.0 | 4.0 | 58 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 29.4±0.5 | 2.0 | 4.0 | 58 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 36.7±0.5 | 2.5 | 4.0 | 58 | 750 | 90 | 50 |
| 38.1±0.5 | 44.1±0.5 | 3.0 | 4.0 | 58 | 750 | 110 | 50 | |
| 50.8±1.0 | 56.8±1.0 | 3.0 | 4.0 | 58 | 750 | 150 | 50 | |
| 63.5±1.0 | 69.5±1.0 | 3.0 | 3.0 | 44 | 750 | 180 | 50 | |
| 3" | 76.2±1.0 | 83.2±1.0 | 3.5 | 3.0 | 44 | 750 | 220 | 50 |
| 4" | 101.6±1.5 | 109.6±1.5 | 4.0 | 3.0 | 44 | 750 | 330 | 50 |
PVC Suction Hose Medium Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 24.0±0.5 | 2.5 | 4.5 | 65 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 30.4±0.5 | 2.5 | 4.5 | 65 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 38.7±0.5 | 3.5 | 4.5 | 65 | 750 | 90 | 50 |
| 1-1/2" | 38.1±0.5 | 45.1±0.5 | 3.5 | 4.5 | 65 | 750 | 110 | 50 |
| 2" | 50.8±1.0 | 57.8±1.0 | 3.5 | 4.5 | 65 | 750 | 150 | 50 |
| 2-/2" | 63.5±1.0 | 70.5±1.0 | 3.5 | 3.5 | 50 | 750 | 180 | 50 |
| 3" | 76.2±1.0 | 84.2±1.0 | 4.0 | 3.5 | 50 | 750 | 220 | 50 |
| 4" | 101.6±1.5 | 111.6±1.5 | 5.0 | 3.5 | 50 | 750 | 330 | 50 |
| 5" | 127.0±1.5 | 139.0±1.5 | 6.0 | 2.7 | 43 | 750 | 500 | 50 |
| 6" | 152.4±1.5 | 166.4±1.5 | 7.0 | 2.7 | 43 | 750 | 700 | 30 |
| 8" | 203.2±1.5 | 219.2±1.5 | 8.0 | 2.0 | 29 | 750 | 1100 | 11.8 |
| 10" | 254.0±1.5 | 274.0±1.5 | 10.0 | 2.0 | 29 | 750 | 1400 | 11.8 |
| 12" | 304.8±1.5 | 324.8±1.5 | 10.0 | 2.0 | 29 | 750 | 1800 | 11.8 |
| 14" | 355.6±1.5 | 375.6±1.5 | 10.0 | 2.0 | 29 | 750 | 2200 | 11.8 |
PVC Suction Hose Heavy Duty
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 19.0±0.5 | 25.0±0.5 | 3.0 | 5.0 | 72 | 750 | 70 | 50 |
| 1" | 25.4±0.5 | 32.4±0.5 | 3.5 | 5.0 | 72 | 750 | 70 | 50 |
| 1-1/4" | 31.7±0.5 | 39.7±0.5 | 4.0 | 5.0 | 72 | 750 | 90 | 50 |
| 1 1/2 | 38.1±0.5 | 46.1±0.5 | 4.0 | 5.0 | 72 | 750 | 110 | 50 |
| 2 | 50.8±1.0 | 58.8±1.0 | 4.0 | 5.0 | 72 | 750 | 150 | 50 |
| 2 1/2 | 63.5±1.0 | 72.5±1.0 | 4.5 | 4.0 | 58 | 750 | 180 | 50 |
| 3" | 76.2±1.0 | 86.2±1.0 | 5.0 | 4.0 | 58 | 750 | 220 | 50 |
| 4 | 101.6±1.5 | 116.6±1.5 | 7.5 | 4.0 | 58 | 750 | 330 | 50 |
| 5" | 127.0±1.5 | 141.0±1.5 | 7.0 | 3.0 | 44 | 750 | 500 | 50 |
| 6" | 152.4±1.5 | 170.4±1.5 | 9.0 | 3.0 | 44 | 750 | 700 | 30 |
| 8" | 203.2±1.5 | 225.2±1.5 | 11.0 | 2.5 | 36 | 750 | 1100 | 11.8 |
| 10" | 254.0±1.5 | 278.0±1.5 | 12.0 | 2.5 | 36 | 750 | 1400 | 11.8 |
| 12" | 304.8±1.5 | 328.8±1.5 | 12.0 | 2.5 | 36 | 750 | 1800 | 11.8 |
| 14" | 355.6±1.5 | 379.6±1.5 | 12.0 | 2.5 | 36 | 750 | 2200 | 11.8 |

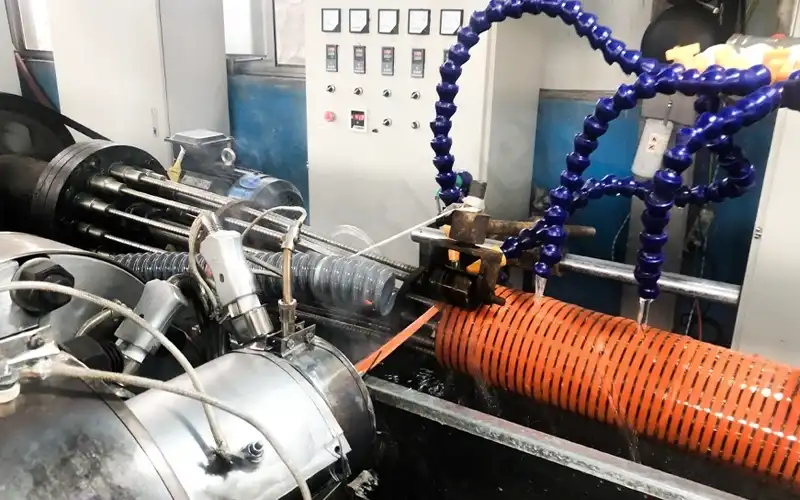

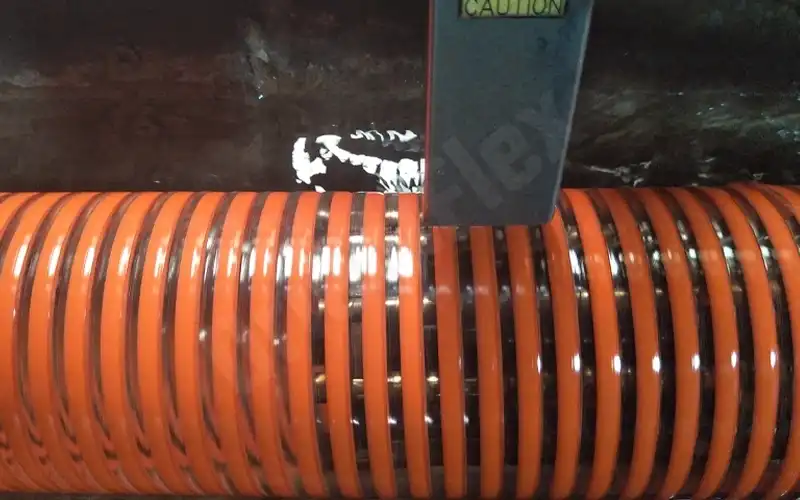

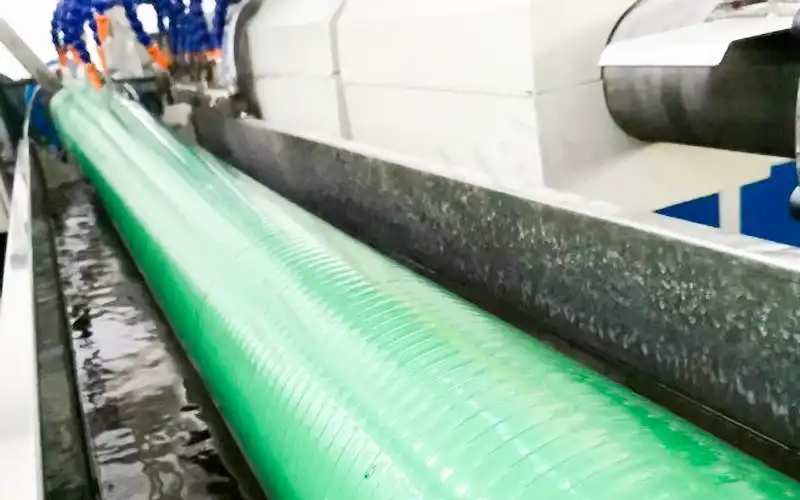

Production Details
OrientFlex specializes in the design and production of high-performance PVC Suction Hoses, setting new benchmarks for reliability in demanding industrial, agricultural, and construction applications. Each hose is meticulously engineered using advanced manufacturing techniques and premium materials to achieve optimal performance while maintaining cost efficiency.
You May Also Like
Frequently Asked Questions
Q: What is the pressure bearing capacity of PVC suction pipes? How to choose different pressure ratings?
A: Products are usually divided into several grades according to working pressure (e.g., 0.6MPa, 1.0MPa, 1.6MPa). When choosing, you need to consider the actual working pressure (including water hammer effect) and leave a safety margin. Please refer to the product specifications table or consult an engineer for specific parameters.
Q: Will the pipes become brittle and yellow after long-term use? How to prevent this?
A: This is a problem of PVC aging. This can be effectively delayed by using pipe materials with added UV stabilizers and heat stabilizers. Avoid prolonged exposure to sunlight, and backfill the soil promptly after construction.
Q: Do the pipes need anti-corrosion treatment? How to construct under different geological conditions?
A: PVC itself is corrosion-resistant and does not require additional anti-corrosion treatment. However, in rocky foundations or areas with many stones in the backfill soil, a sand cushion layer (about 15cm thick) needs to be laid at the bottom and sides of the pipe to protect the pipe wall. Avoid direct contact between the pipe and sharp, hard objects.
Q: Do your products have relevant quality certifications? Such as ISO, SGS, etc.
A: Our products comply with relevant international quality standards, and we can provide third-party testing certifications such as ISO and SGS. Certification certificates or test reports are available upon request.
Q: Do you support customized production? Such as special colors, lengths, or pressure ratings?
A: We support customization according to customer needs, including pipe diameter, wall thickness, color, and special pressure ratings. Please provide detailed technical parameters for evaluation.
Q: Can you provide samples for testing?
A: Yes. We provide standard samples for customer testing and evaluation. Please contact sales for sample application procedures and costs.
Q: What technical support do you provide? Such as installation guidance and selection consultation?
A: We provide comprehensive technical support, including free selection consultation, installation technical guidance, and on-site problem solving, to ensure your smooth use of our products.
